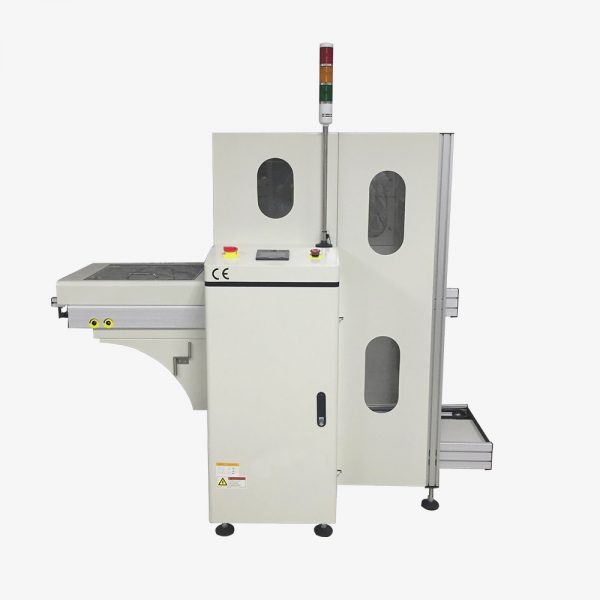

Multi Magazine Unloader

Application

The Multi Magazine Unloader is used at the end of the line for unloading of PCB’s from the production line. An arriving PCB is taken up by the attached conveyor and then pushed into the magazine by the pusher. The magazine indexes to the next position and is ready for the following unloading cycle.

Features

Controlled by Omron PLC.
Easy operation by touch screen.
Multiple pitches selectable.
Automatic magazine change-over.
Tower light display for machine status.
3 magazines loading capability.
SMEMA interface.
CE certified.

Specification

Model	CMU250ACT	CMU330ACT	CMU390ACT	CMU460ACT
Size	M	L	LL	XL
Power	AC 110/220V ±10V, 50/60HZ
Air Pressure	4 – 6 kgf/cm2
Fixed Rail	Front
PCB Size	350x(50 – 250)mm	460x(50 – 330)mm	535x(50 – 390)mm	535x(50 – 460)mm
Transfer Height	900 ±20mm or Specify
PCB Direction	left to right or right to left(option)
Magazine Rack Size	350x320x563mm	460x400x563mm	535x460x570mm	535x530x570mm
Pitches	1 – 50, 10mm pitch
Machine Dimension	1685x745x1200mm	1920x820x1200mm	2165x880x1200mm	2165x950x1200mm
Machine Weight	240kg	270kg	290kg	310kg
