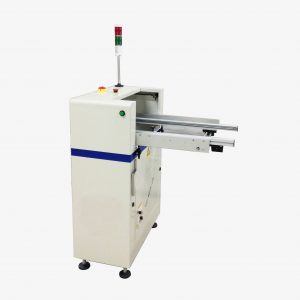

The Telescopic Gate Conveyor is used for creating a passage in the PCB assembly line to give the operator access to the rear of the production equipment. The integrated conveyor segment slides across the opening upon request from the downstream machine when a board enters the unit. The conveyor returns to its retracted home position as the board is released, leaving a normally open passage in the line.
| Model | CTG350ACT | CTG460ACT |
|---|---|---|
| Power Supply | AC 110/220V ±10V, 50/60HZ | |
| Fixed Rail | Front | |
| Walkway | Max. 900mm adjustable | |
| PCB Size | 460x(50 – 350)mm | 535x(50 – 460)mm |
| Transfer Height | 900 ±20mm | |
| Transfer Direction | left to right or right to left(option) | |
| Machine Dimension | (750-1700)x720x1180mm | (750-1700)x820x1180mm |
| Machine Weight | 255kg | 285kg |
