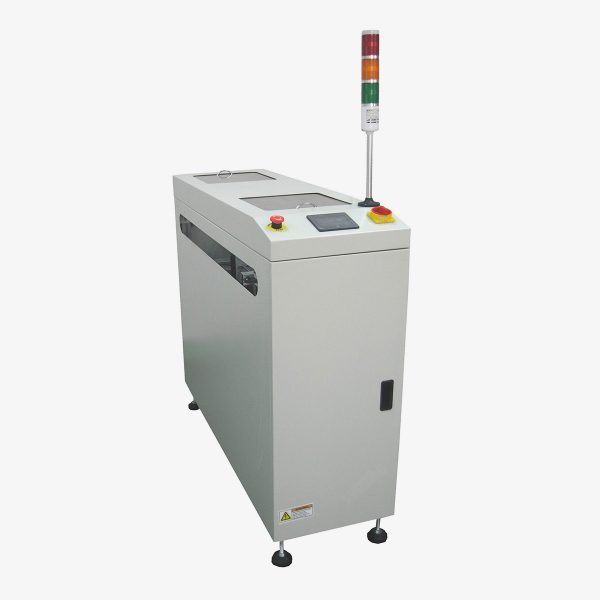

PCB Traverser

Application

The PCB Traverser is used for transporting boards from one line into two lines or vice versa. The orientation of the board is not changed during traversing.

Features

  • Controlled by Omron PLC and servo motor.
  • Easy operation by touch screen.
  • Width adjustment by hand crank.
  • By pass mode selectable.
  • Traversing length specified.
  • Configuration upon request.
  • Front and rear stop positions by touch screen setting.
  • SMEMA compliant.
  • CE certified.
Category:

Description

Model CSC350ACT CSC460ACT
Power Supply AC 110/220V ±10V, 50/60HZ
Fixed Rail Front
PCB Width 50 – 350mm 50 – 460mm
Traversing Length specified
Transfer Height 900 ±20mm
PCB Direction left to right or right to left(option)
Machine Dimension 500*W*1100mm 550*W*1100mm 50 – 460mm
Machine Weight Depends on traversing distance Depends on traversing length 550x1000x1100mm
